| System Features |

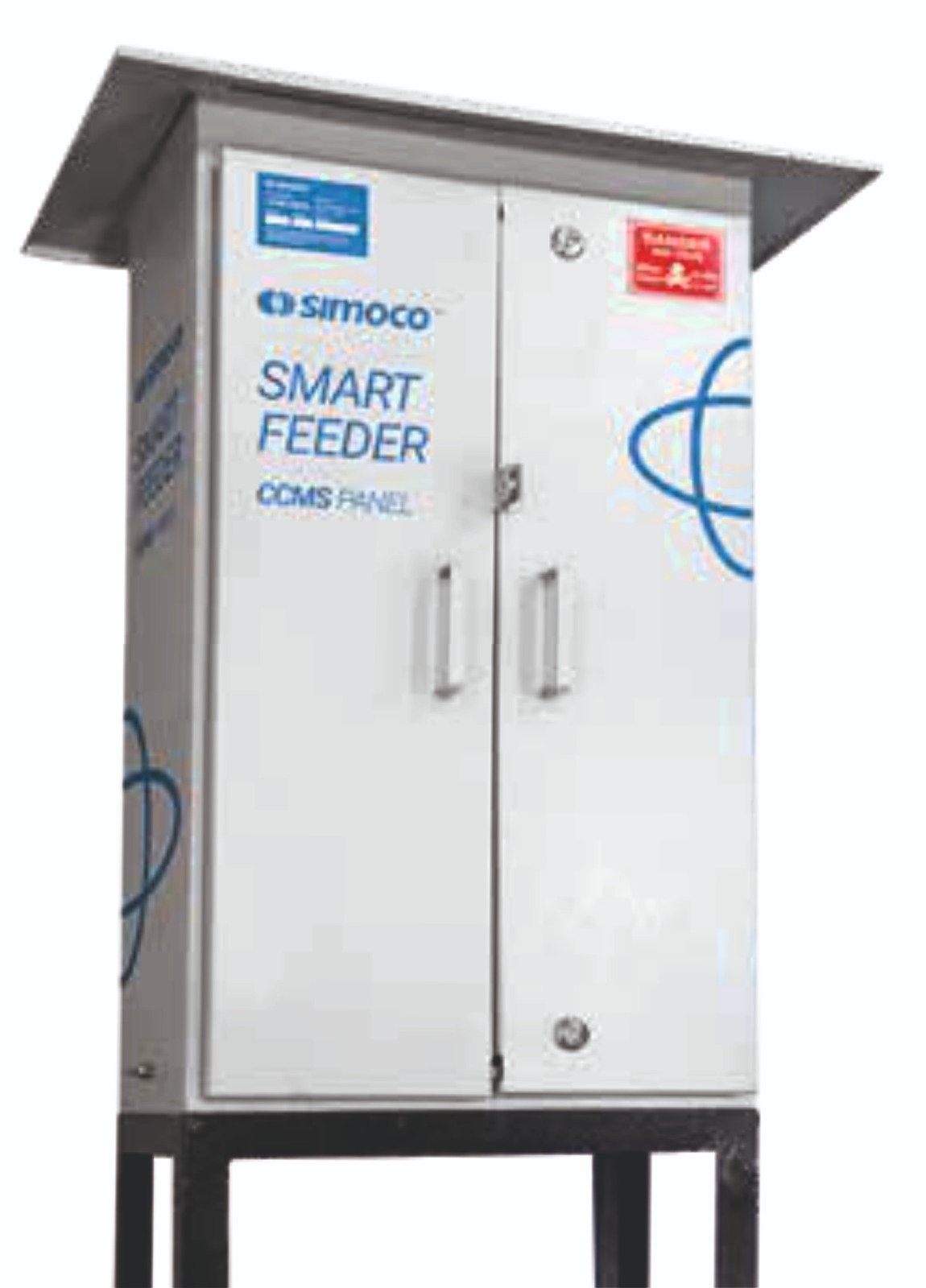

| On / Off / Dimming / Control / Monitoring a group or entire network of LED lights connected to Smart Feeder Control Panel (SFCP) from Central Control Station. |
| Astronomical Timer mode to On / Off the lights based on sunrise and sunset of a given geographical location. |
| Stage group dimming. |
| GSM / GPRS based Gateway for Remote Monitoring. |
| Short Circuit and Over Voltage Protection. |
| Uninterrupted operation on any single phase failure. |
| Anti-Theft Alert |
| 4 Hrs Battery Backup |
| Smart Energy Meter & Communication Module |
| CRC Powder Coated Enclosure |
| Alert on unauthorized access to SFCP by Visual indication or SMS. |
| Smart & Control Features |
| User friendly Interface with Integrated Visual Maps of the Roads / Locations. |
| Server or Cloud Based Application Software for Control & Monitoring of SFCP. |
| Secure 128 Bit communication between App and any SFCP. |
| Server or Cloud Database for all data with time stamp. |
| Control and Remote configuration of each SFCP. |
| Manage Data Traffic between SFCP & Cloud / Server. |
| Records LED luminaries glowing and non-glowing hours of a particular SFCP Group |
| Display Real Time Voltage (V), Current (I), Power (W), Power Factor (PF), Apparent Energy, Active Energy, Operating Hours of each light in the network. |
| Report Generation on system performance parameters (Energy Consumed, Luminaire and System Failure, Actual Hours of Operation, Uptime, Energy Pilferage, Line Conditions, Voltage, Current, Power Factor, Luminaires failure per SFCP, Active Lights per SFCP, Active SFCP in the network, etc. |
| Monitoring and measurement of Energy savings during dimming activation. |
| Morning / Evening Report Generation to monitor the faulty lights per Panel and rectification. |
| Data available on Daily, Monthly, Quarterly or Annual basis in Excel / Graphical format. |
| Set user level authorization |
| Emergency override either locally or remotely. |
| Generate Alert message under abnormal situation (Phase-wise current on crossing set threshold value / Phase-wise voltage on crossing set threshold value / Energy Theft / Group failure of lights / No output supply to lights / Mains supply failure with SFCP / Panel Door Open / Over Burning hour beyond the scheduled time. |
| GIS mapping covering all switching points |
| Software Specification |
| Platform |
Web Based |
| Luminaire |
Single or Group of Lights can be connected to SFCP |
| Mode |
Remote (GSM / GPRS) or Automatic (Timer) or Local (Manual) modes |
| Remote Reading |
Real Time Measurement of Voltage, Current, Power, Power Factor, Apparent Energy, Active Energy, Operating Hours |
| Dimming |
Stage Group Dimming via GSM / GPRS from Central Control Room |
| Override |
Emergency override either locally or remotely |
| Interface |
User friendly interface with integrated visual map |
| Security |
128 Bit encrypted communication between server and SFCP |
| Database |
Secured SQL Database |
| Report |
Daily / Weekly / Monthly |
| Alarm |
Crossing of V / I threshold, Energy Theft, Group Failure, No Supply, Manual override, Burn hours limit, Contactor Failure |
